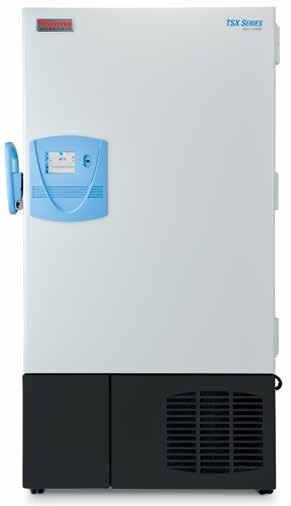

Thermo Scientific™ TSX Series -80°C Freezers

Thermo Scientific™ TSX Series feature V-drive technology, providing temperature uniformity that adapts to your environment, protecting samples and offering significant energy savings. While conventional ultra-low freezers use single speed compressors that continually cycle on and off, the V-drive runs at variable speeds, adjusting cooling performance to the conditions inside and outside the freezer. When conditions are stable, the V-drive runs at a low speed, reducing energy consumption while maintaining a stable temperature for sample protection. When there are frequent door openings, or samples are added to the freezer, the system detects the activity and increases the drive speed.

Now available in 2 capacities:

400 box capacity interior design, allowing the storage of up to 40,000 2mL tubes or 67,600 1mL tubes inside a single freezer of 0.79m2 footprint and only 82.2cm width (includes handle).
600 box capacity interior design, allowing the storage of up to 60,000 2mL tubes or 101,400 1mL tubes inside a single freezer of 1.06m2 footprint and only 110.1cm width (includes handle).

Significant energy savings over conventional ultra-low freezers: - TSX 400: 7.9 kW-hour/day and - TSX 600: 8.7 kW-hour/day*

Peak variation from -80°C set-point:

TSX 400: +6/+1.1 (standard mode), +4/-1.4 (high-performance mode)**
TSX 600 +6.9/+1.8 (standard mode), +4.4/-0.4 (high-performance mode)**

Warm-up time (from -80°C to -50°C): TSX 400: 267 min / TSX 600: 303 minutes***
Natural refrigerants for lower environmental impact and higher cooling efficiency
Water-blown foam insulation, eliminating chemical emissions and reducing the out-gassing common in other foam products
Whisper-quiet operation allowing the freezer to be used directly inside the lab
Intuitive touch-screen user interface featuring alarm status, door-opening status, temperature status, environmental conditions and back-up system status

* Energy calculation: Typical freezer data based on internal testing with freezer set-point at -80°C and ambient temperature at 20°C

** Peak variation from set point: Typical freezer data based on internal testing with freezer set point at -80°C and ambient temperature at 20°C

*** Warm up time: Typical freezer data based on internal testing with freezer set point at -80°C and ambient temperature at 20°C

Products

Specifications

ULT TSX series	TSX 400	TSX 600
Capacity (Metric)	548 litres	815 litres
Holds	400 2-inch boxes	600 2-inch boxes
2ml Vial Capacity per Freezer	40,000	60,000
Footprint (Metric)	0.79 sq. meters	1.06 sq. meters
Energy Usage	7.9 kWH/day (standard), 9.4 kWH/day (high-performance)	8.7 kWH/day (standard), 10.2 kWH/day (high-performance)
Form Factor	Upright	Upright
Height (Metric) Exterior	198.1cm	198.1cm
Height (Metric) Interior	130cm	130cm
Depth (Metric) Exterior	96cm	96cm
Depth (Metric) Interior	68.6cm	68.6cm
Width (Metric) Exterior	81.8CM	110.2cm
Width (Metric) Interior	58.9cm	87.4cm
Temperature Range (Metric)	-50°C to -80°C	-50°C to -80°C
Weight (Metric)	332kg	388kg
Amps/Breaker	4/10	4/10
Inner Doors	2	2
Compartments	4	4
Shelves	3	3
Capacity (Metric) Shelf	73.4KG	110.1kg
Display Touch Screen	LCD
On-Board Datalogging	Standard
Operating Modes	Standard or High-Performance
Setpoint Security	Standard - Individual user names
Health Monitoring	On Screen, Log File
Voltage Compensation	Buck/Boost
1 Minute Door Opening Recovery	17 minutes	24 minutes
Peak Variation at -80C	+6/+1.1 (standard), +4/-1.4 (high-performance)	+6.9/-1.8 (standard), +4.4/-0.4 (high-performance)
Warm Up Time -80C to -50C	267 min.	303 min.
Backup Systems	CO2 or LN2 Optional
Chart Recorder	7-day Ink or Inkless Optional
Access Security	KeyLock Standard, Padlock Compatible, keycard access
Water Cooled	N/a
Smart-Vue Compatibility	Fully Compatible
Certifications/Compliance	CE
Electrical Requirements	2 30V, 50Hz
Noise level	47. 5dBA	45.5 dBA
